Telemetría vehicular, disponible localmente.
Un controlador de dos capas para diagnóstico local que integra alimentación regulada, comunicación CAN, pantalla táctil y procesamiento embebido.
STM32G431KBT6 CAN · SPI · I²C
El registro técnico detallado está disponible por ahora en inglés.
This two-layer PCB was designed as a complementary diagnostic device for an unmanned vehicle. It receives vehicle information over CAN and makes sensor and battery status available through a local touchscreen interface.
Core components
- STM32G431KBT6
- Adafruit 2.8” and 3.2” Color TFT Touchscreen
- ECS-160-12-33-AGN-TR - > 16 MHz Crystal
- R-78E3.3-1.0 -> Regulator
- TCAN330G -> 3.3V CAN Transceiver
Interface decisions
The display can be connected through either I²C or SPI. The microcontroller receives vehicle information from another device over CAN, separating the local diagnostic interface from the rest of the platform.
Schematic

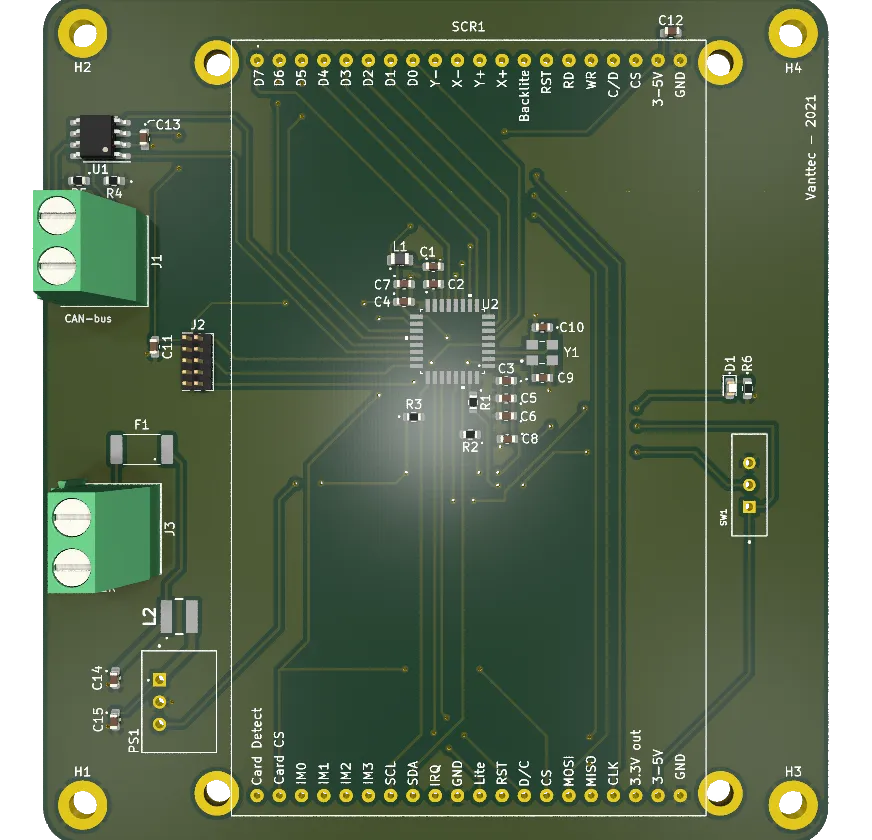

Front view
